Name: High Toughness Screw Die Carbide Die Shear Die Mold Polished Better Mold Life
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 55.00 USD
Availability: InStock

المنزل > المنتجات > مقطعة الشعر >

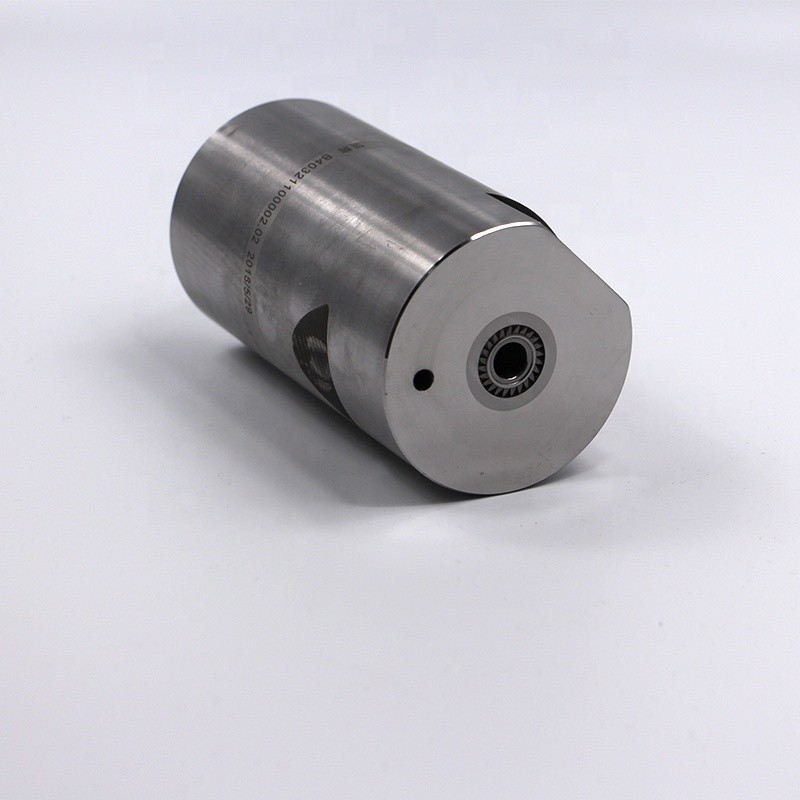

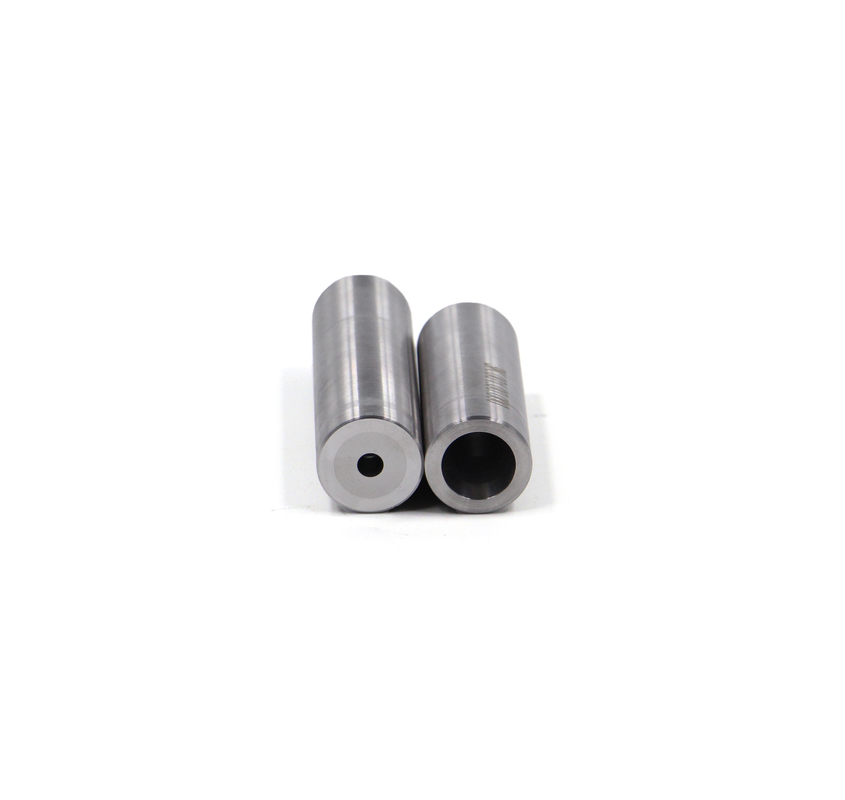

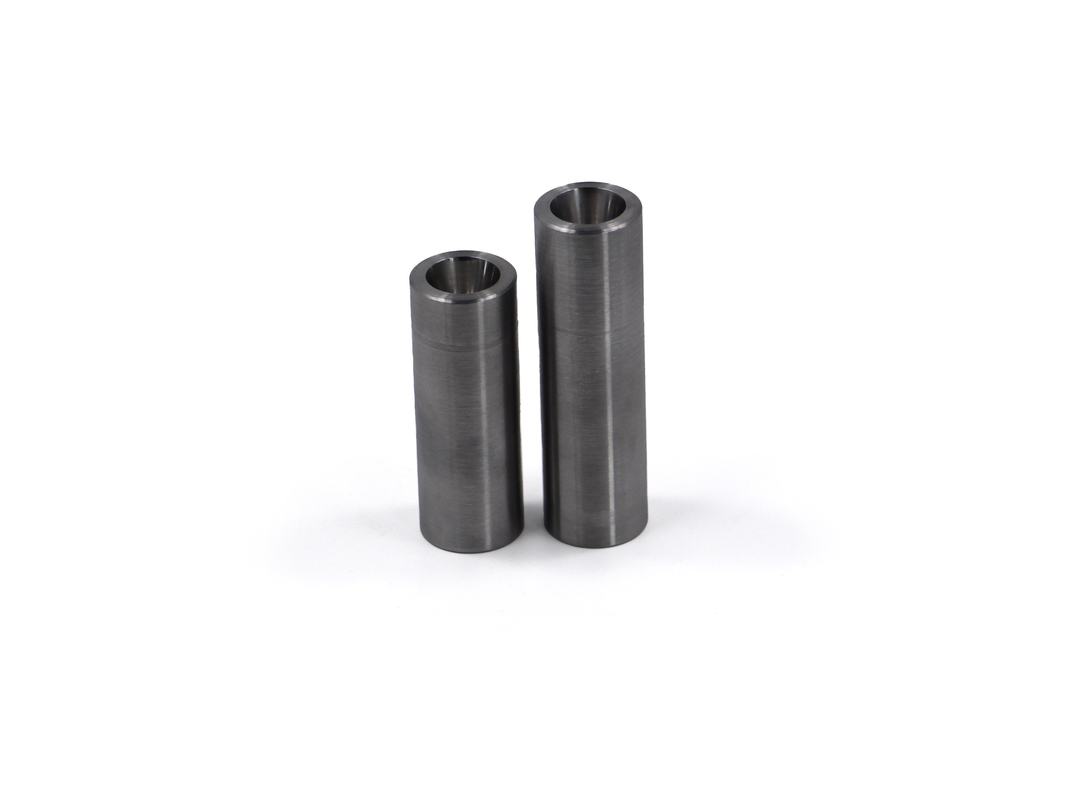

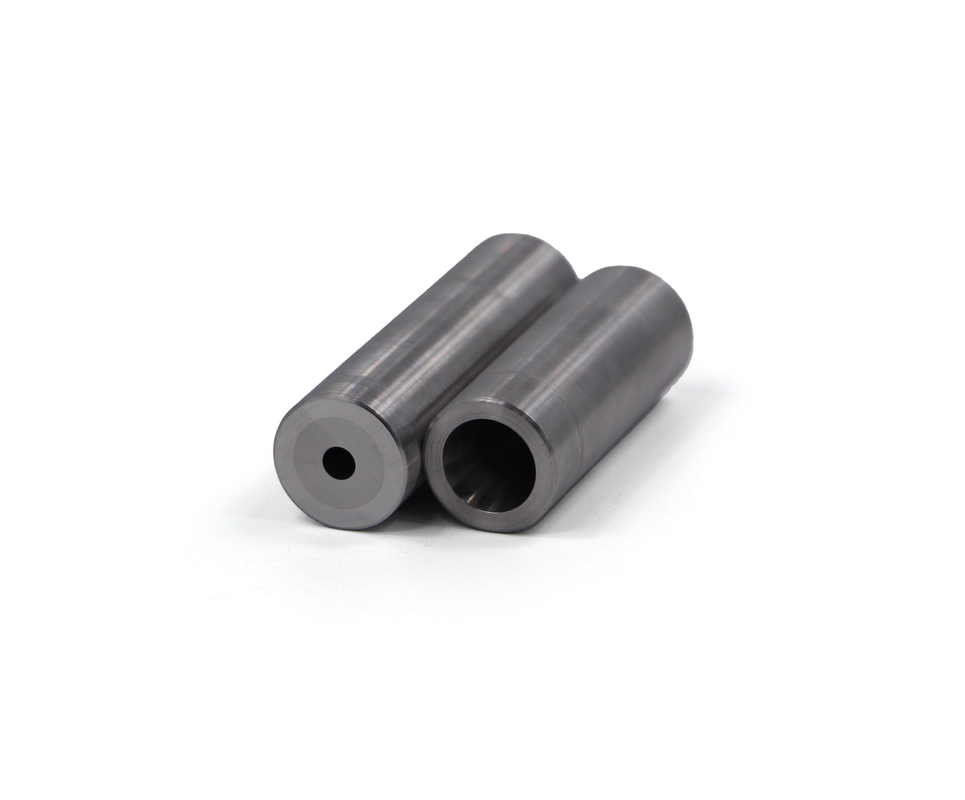

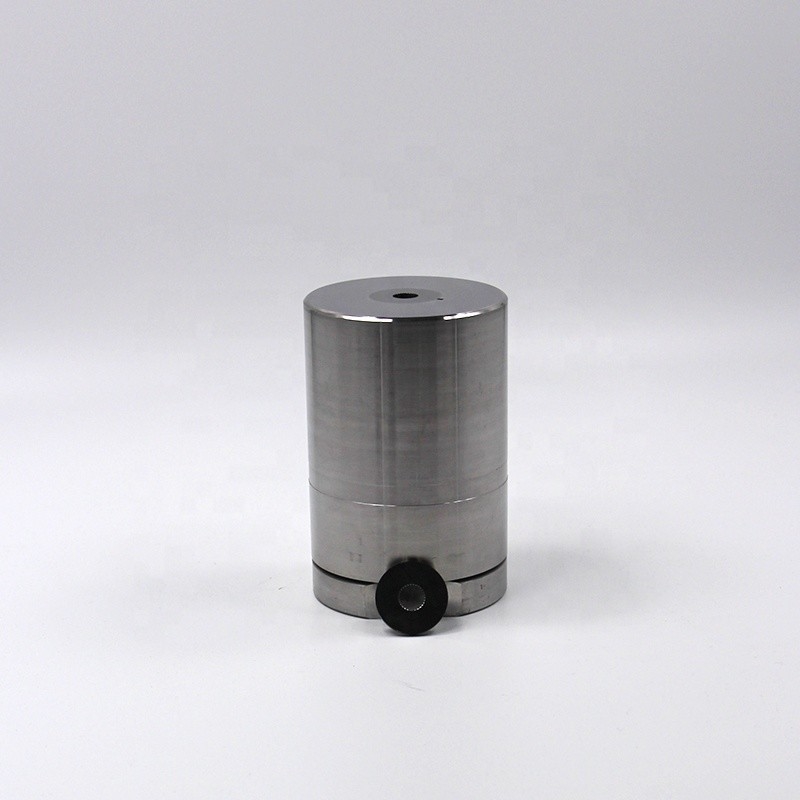

High Toughness Screw Die Carbide Die Shear Die Mold Polished Better Mold Life

Polished Carbide Die,High Toughness Screw Die,Polished Shear Die Mold

High Toughness Screw Die

Polished Shear Die Mold

Place of Origin:

Chongqing

اسم العلامة التجارية:

Henghui

Model Number:

Customized

اتصل بنا

اطلب عرض أسعار

تفاصيل المنتج

Product Name:

Screw Die Carbide Die Shear Die

Material:

Carbide, H13

Tolerance:

+/-0.01mm

Service:

OEM/ODM Customized

Application:

For bolts&screws making

Surface treatment:

Polish

Drawing format:

2D/(PDF/CAD)3D(IGES/STEP)

Model Number:

OEM

شروط الدفع والشحن

Minimum Order Quantity

الأسعار

10-100

Delivery Time

10-30 DAYS

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000

منتجات ذات صلة

Non Standard Screw Shear Die High Wear Resistance ISO9001 Certification

احصل على أفضل سعر

Customized Size Cutting Shear Die 0.01 Tolerance With SKD61 / DIN1.2344 Shell

احصل على أفضل سعر

Steel Non Standard Screw Wire Shear Die , Durable Tungsten Carbide Die

احصل على أفضل سعر

Carbide Precision Forging Mould Shearing Cutting Dies Longer Functional Life

احصل على أفضل سعر

اتصل بنا

86-23-60338218-60338218

hou@citool.com

86-023-60338218-60338218

اتصل الآن

وصف المنتج

Cheaper Price High Toughness Screw Die Carbide Die Shear Die Mold Polished Better Mold Life

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance
