Name: Precision Forging Dies For Metal Components Highlights Applications Automotive Aerospace Metal Forming
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

المنزل > المنتجات > التنغستن كاربايد يموت >

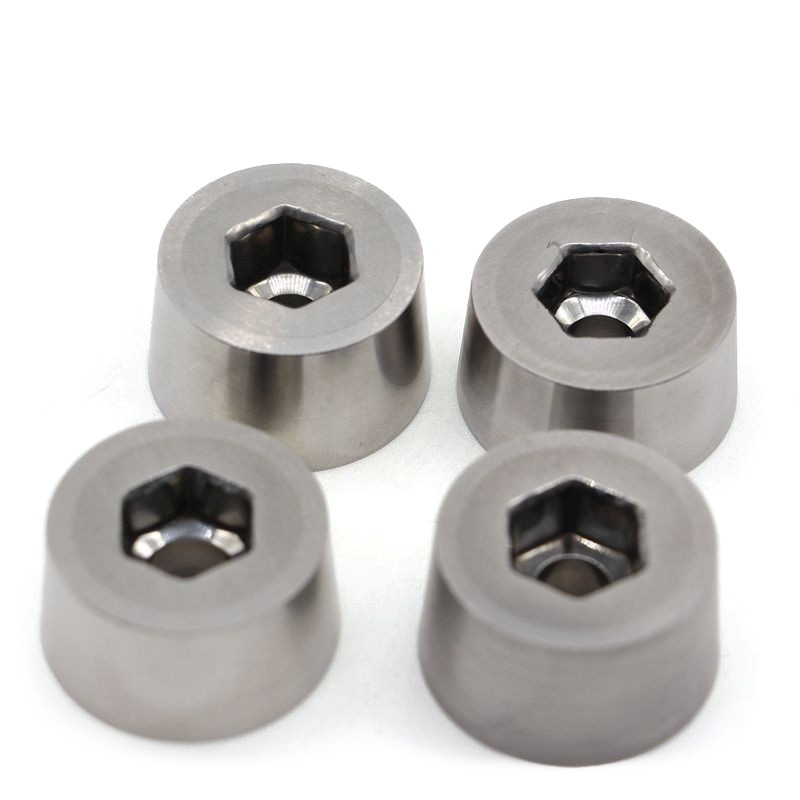

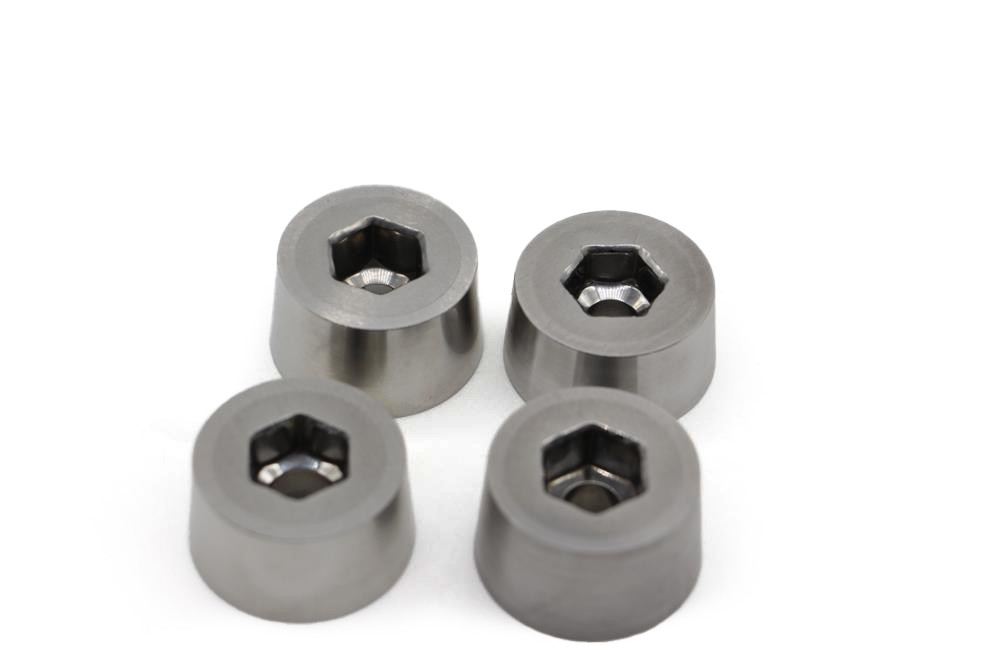

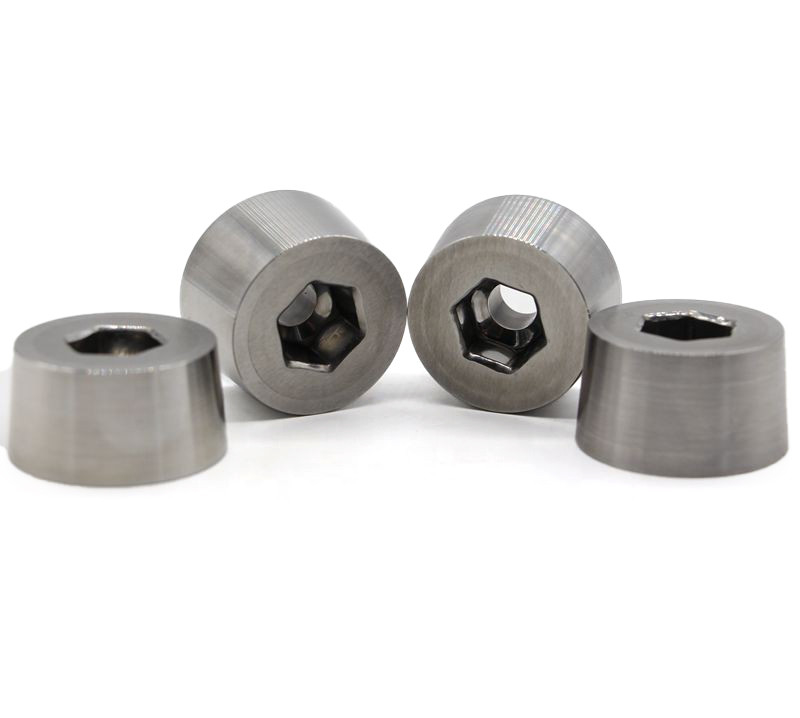

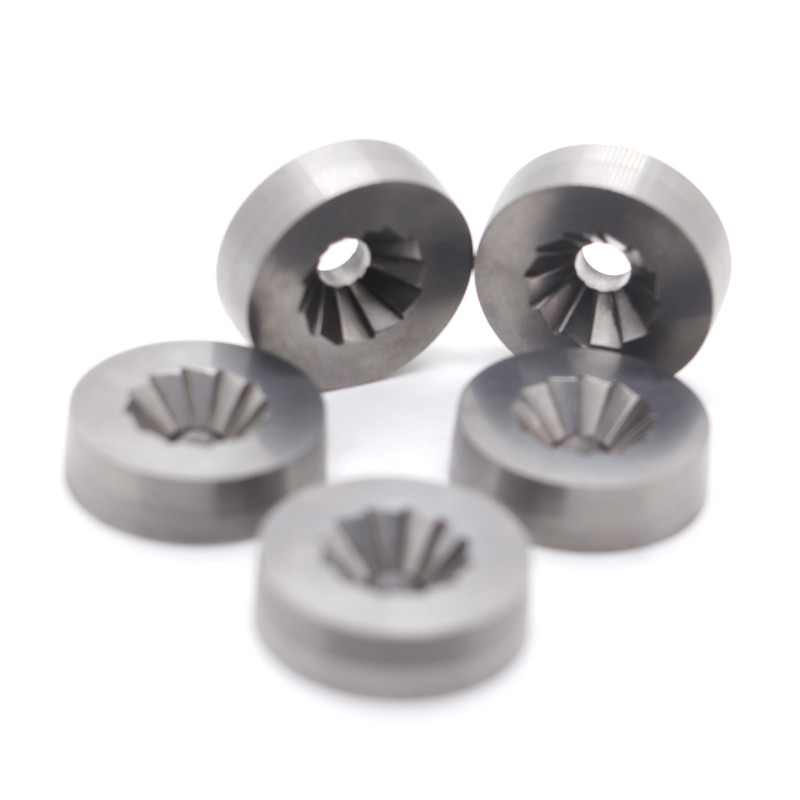

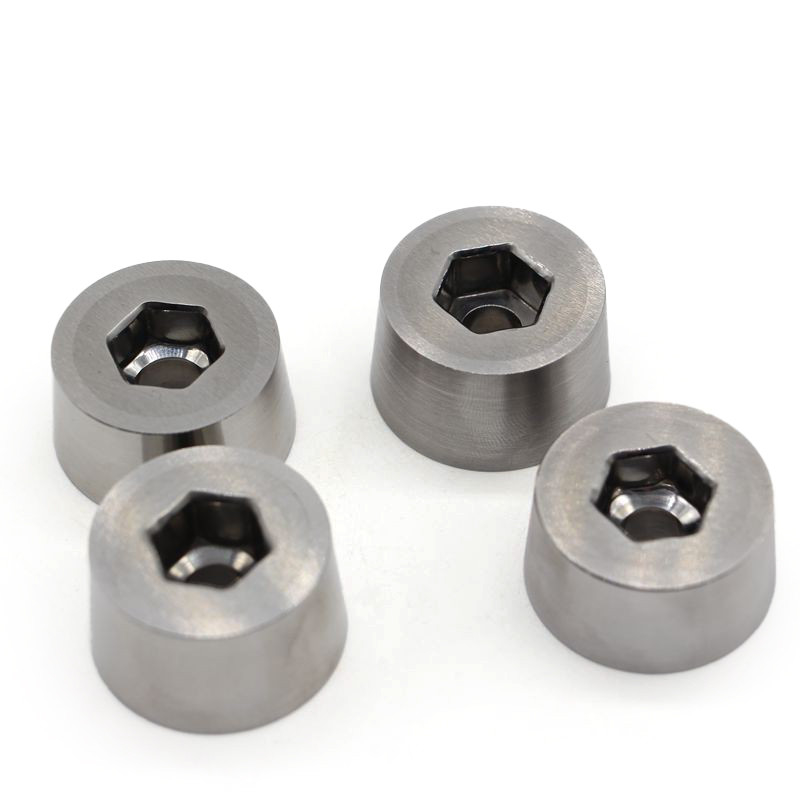

Precision Forging Dies For Metal Components Highlights Applications Automotive Aerospace Metal Forming

Cross Recessed Machine Micro Screws,Phillips Cylinder Head Machine Micro Screws,304 Stainless Steel Machine Micro Screws

Phillips Cylinder Head Machine Micro Screws

304 Stainless Steel Machine Micro Screws

Place of Origin:

CHINA

اسم العلامة التجارية:

Heng Hui

إصدار الشهادات:

ISO9001

Model Number:

Customized

اتصل بنا

اطلب عرض أسعار

Precision Forging Dies For Metal Components Highlights Applications Automotive Aerospace Metal Forming

تفاصيل المنتج

Advantage:

Strong Strength

Feature:

High Precision

Runner:

Hot Runner/Cold Runner

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Surface treatment:

Customer's Request

Mould Life:

250000-300000shots

شروط الدفع والشحن

Minimum Order Quantity

10 PCS

الأسعار

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

منتجات ذات صلة

Tungsten Carbide Molds: Precision Engineering For Industrial Applications High-Performance Tooling Solutions With Superior Wear Resistance

احصل على أفضل سعر

Wear-Resistant Tungsten Steel Tooling For Metalworking Plastic Molding

احصل على أفضل سعر

Heavy-Duty Punch Rod For Metal Stamping Industrial Forging Striker Shaft Alloy Steel Heat-Treated

احصل على أفضل سعر

High-Precision Master Die Precision Tooling For Production For Demanding Manufacturing Applications

احصل على أفضل سعر

اتصل بنا

+8613983025528

sales1@citool.com

86-023-60338218-60338218

اتصل الآن

وصف المنتج

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	HRA	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Advantages

Superior Dimensional Accuracy
Produces near-net-shape components with tight tolerances (±0.1-0.5mm)
Minimizes secondary machining requirements
Enhanced Material Strength & Durability
Refines grain structure through controlled deformation
Eliminates internal voids/porosity (superior to casting)
Achieves 15-30% higher fatigue resistance vs. machined parts
Optimal Material Utilization
Achieves 90-95% material yield (vs. 40-60% in machining)
Reduces raw material waste and costs
High Production Efficiency
Enables rapid mass production (up to 1,200 parts/hour)
Consistent output quality across production runs

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Factory

Inspection Equipment

Packing and Delivering
