مكان المنشأ:
تشونغتشينغ ، الصين
اسم العلامة التجارية:
Henghui
رقم الموديل:
مخصصة
اتصل بنا
| Attribute | Value |
|---|---|
| Shaping Mode | Die Casting |
| Product Material | DC53 |
| Product | SCREW, Thread Rolling Dies |

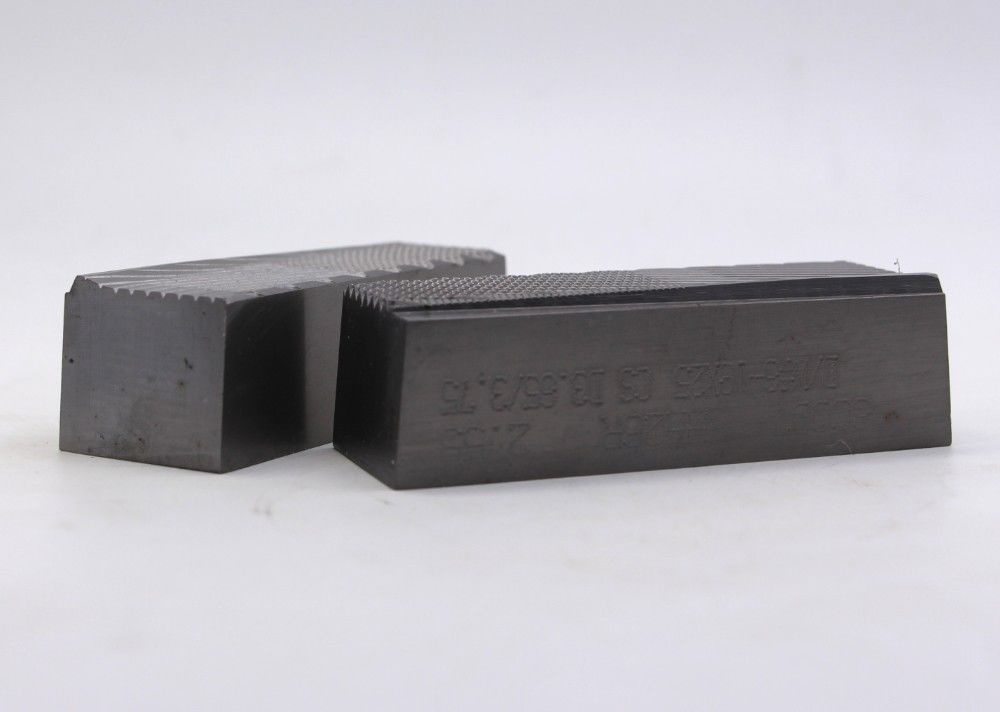

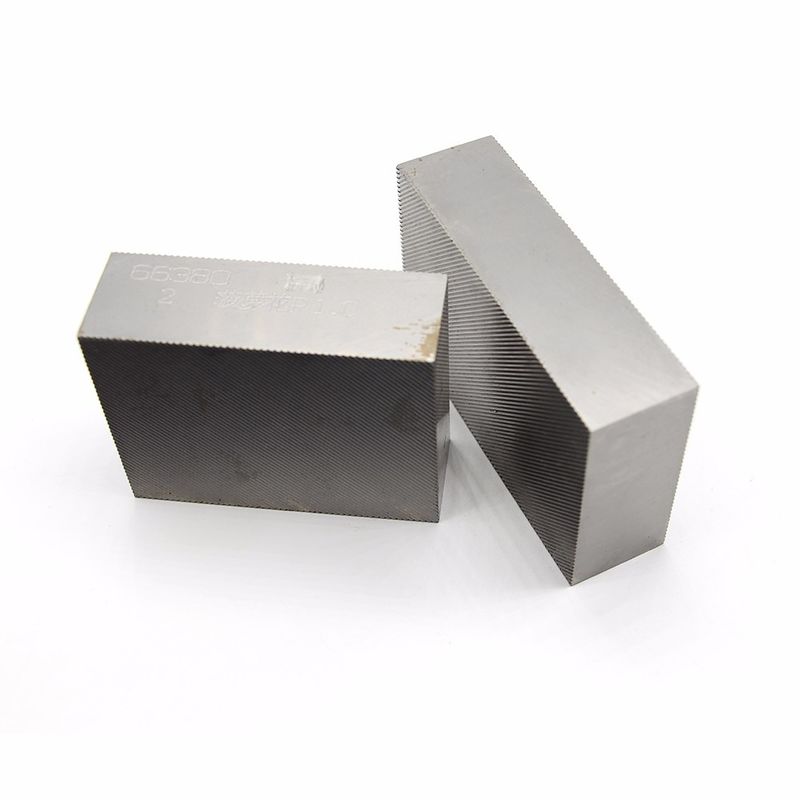

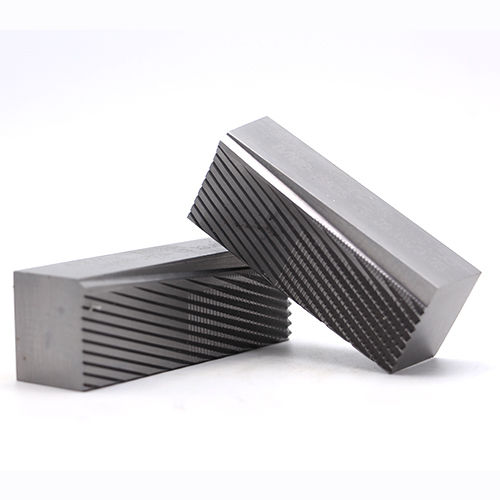

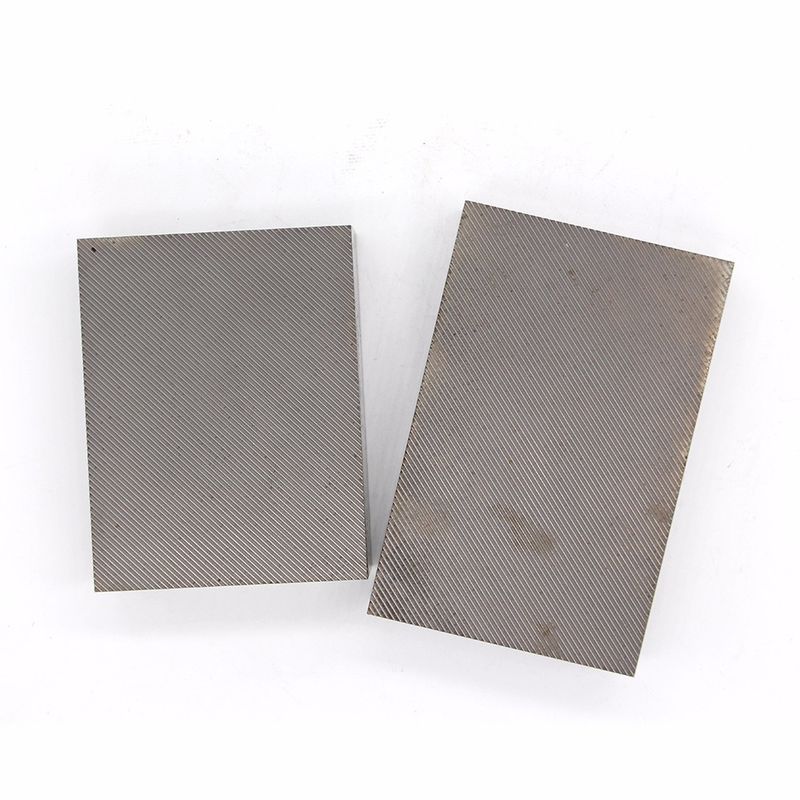

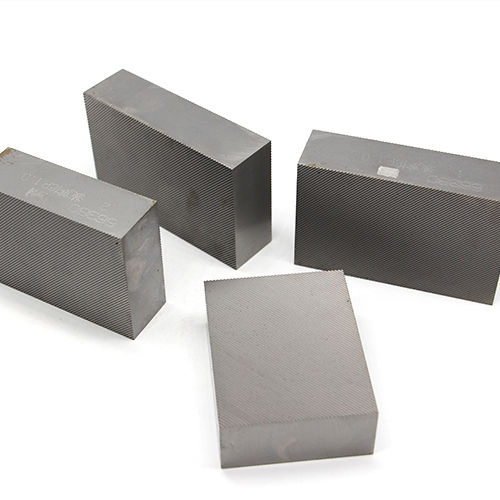

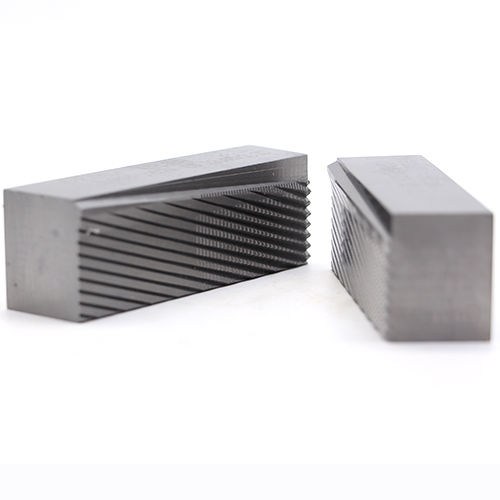

| Product name | Screw Making Molds Thread Rolling Dies Plate HSS |
| Material | HSS |
| Size | Customer's Drawing |
| Certificate | ISO9001:2015 |
| Type | A/B |
| Service | Customized OEM |
| Usage | For making screws |
| Packing | Carton |
| Element | C | Si | Mn | P | S | Cr | Mo | V | W |
|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.95 | 0.89 | 0.3 | 0.018 | 0.006 | 7.7 | 1.92 | 0.75 | 0.91 |
| MACHINE TYPE | S | H | L1(FIXED) | L2(MOVING) |
|---|---|---|---|---|
| 0 | 19 | 25 | 51 | 64 |
| 3/16 | 25 | 25,38,55 | 75 | 90 |
| 1/4 | 25 | 25,40,55,65,80 | 100 | 115 |
| 5/16 | 25 | 25,40,55,65,80,105 | 127 | 140 |
| 3/8 | 25 | 25,40,55,65,80,105 | 150 | 165 |
| 1/2 | 35 | 55,80,105,125,150 | 190 | 215 |
| 3/4 | 38 | 55,80,105,125,150 | 230 | 265 |
| 003 | 15 | 20 | 45 | 55 |
| 004 | 20 | 25 | 65 | 80 |
| 4R | 20 | 25 | 60 | 70 |
| 6R | 25 | 25,30,40,55 | 90 | 105 |
| 8R | 25 | 25,30,40,55,65 | 108 | 127 |
| 250 | 25 | 25,40,55 | 110 | 125 |
| DR125 | 20.8 | 25,40 | 73.3 | 86.2 (5。） |
| DR200 | 20.8 | 25,40,53 | 92.3 | 105.2 (53) |
| DR250 | 23.8 | 25,40,54 | 112 | 131.2 (Í) |
